• Integrated light source, lens and camera, plug‑and‑play out‑of‑box
• Multiple communication interfaces: IO / RS232 / Ethernet
• Ultra‑compact form factor, perfect for space‑limited embedded deployment
• Cost‑efficient, fast delivery, easy installation & commissioning
• Target applications: auto spare‑part surface defect inspection, medical & food packaging integrity verification



Product Features

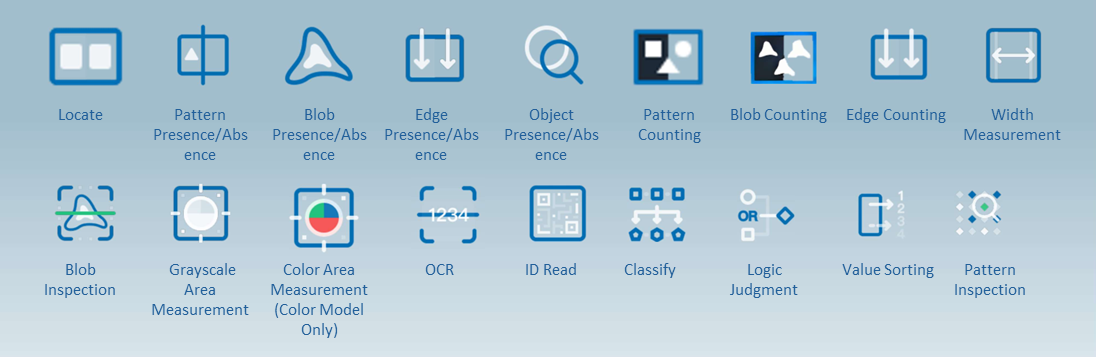

1‑ Rich Vision Inspection Tools

• Powerful built‑in vision tools plus edge‑AI capability for flexible configuration.

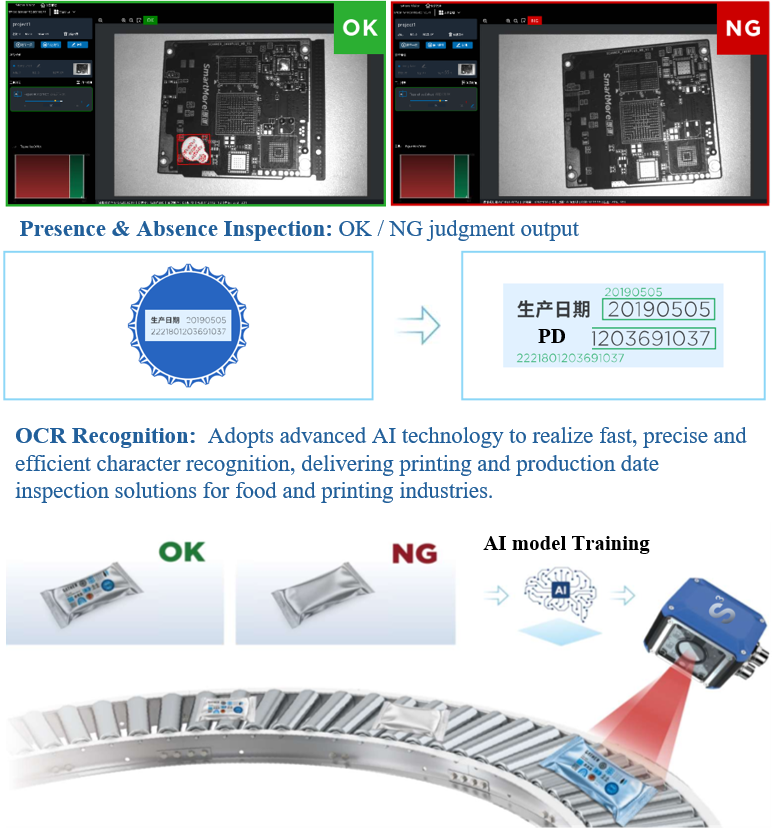

• Supports presence/absence check, counting, front‑back detection, binary classification, OCR and other inspection functions for diverse scenarios.



2‑ Non‑program Inspection Solution Configuration

• Intuitive software requiring no programming skills.
• Complete inspection setup and modification in only 4 simple steps for different use cases.



3‑ Diversified Imaging & Illumination

• Optional color / mono cameras; red & white light sources available.

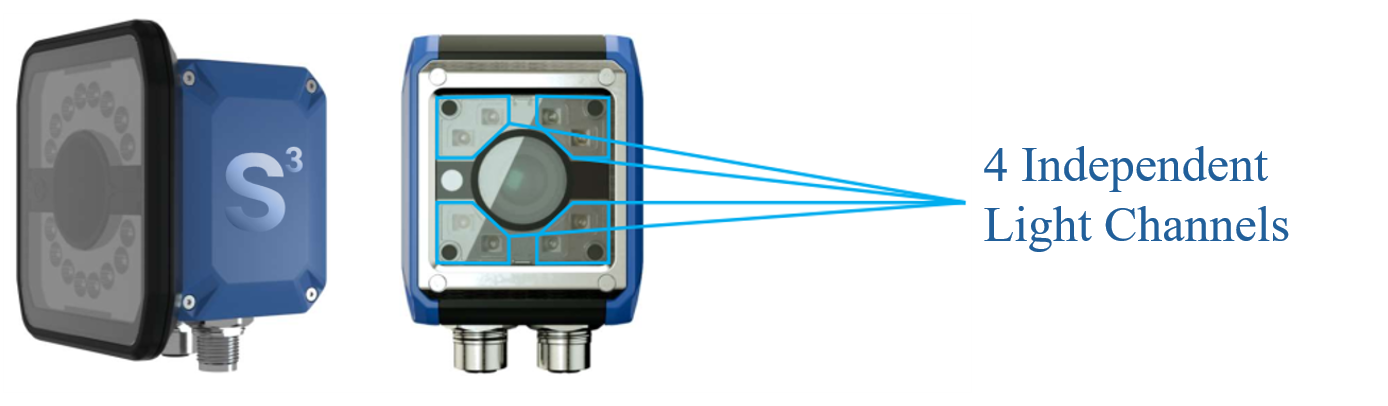

• Controllable LED with up to 4 independent light channels, optional polarizing / non‑polarizing filters to optimize on‑site image quality.



4‑ High Stability & Reliability

IP67 protection rating, validated via high‑low temperature and aging tests, reliable for various mounting positions and harsh industrial environments.

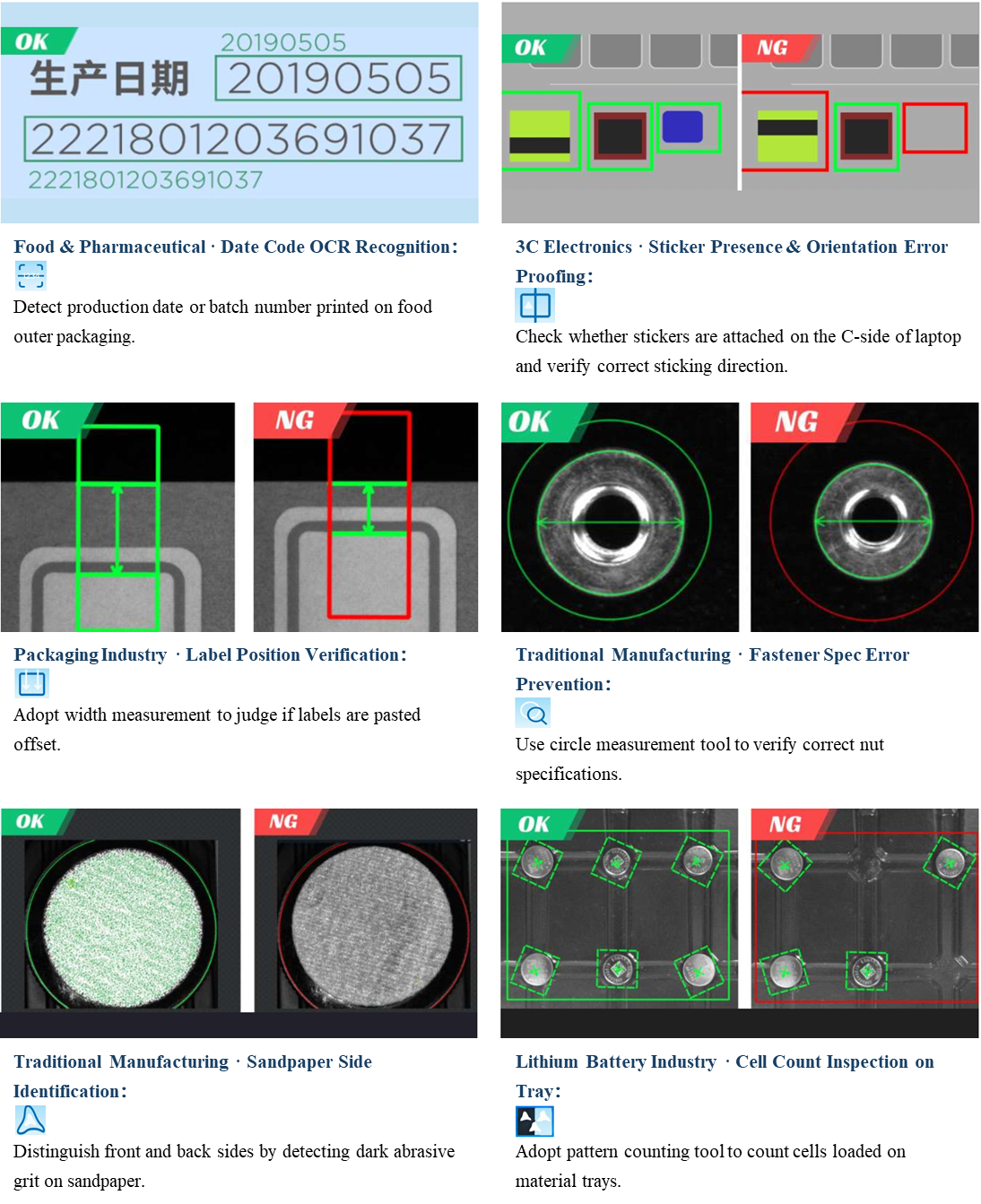

5- Applications

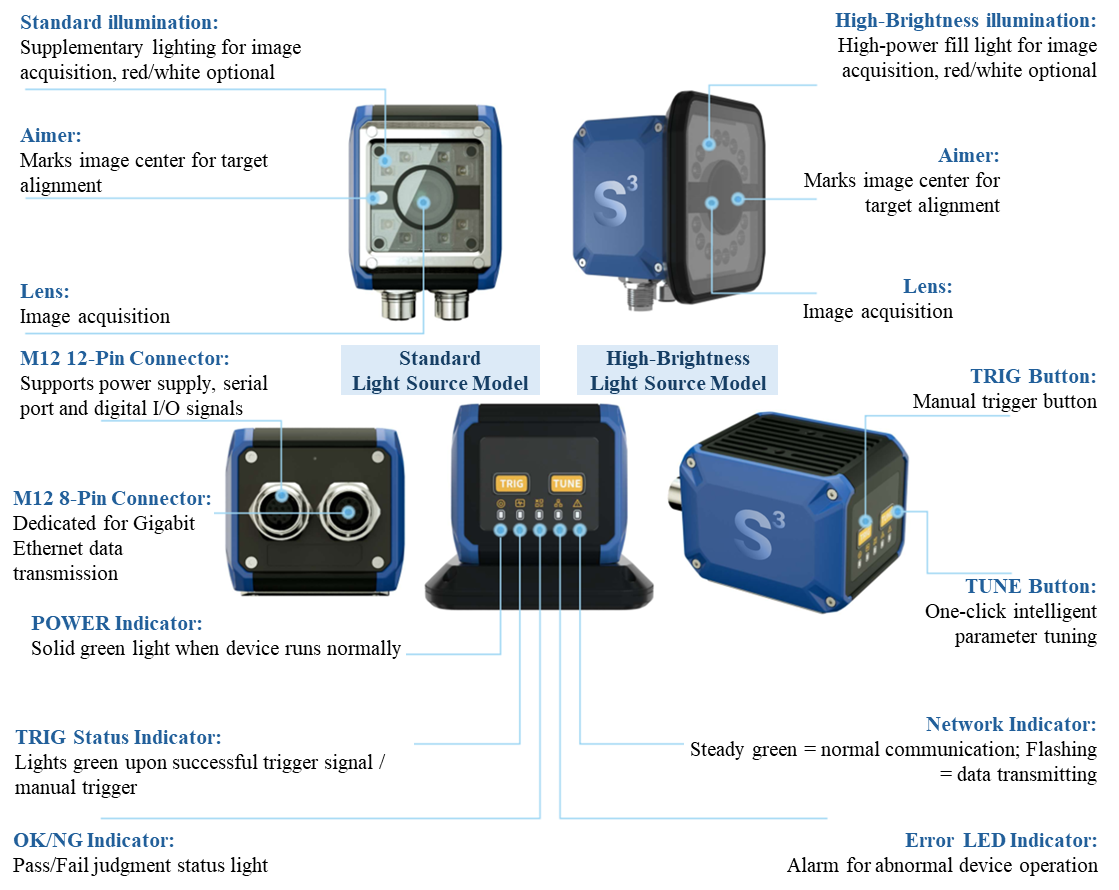

6- Sensor Layout
